Hettich TH52 Sensys Wide Angle Hinges 2x 2x Wide Angle Hinges 8657i Reclining Dampened Opening Angle 165 Degree for Screwing on with Base Plates

The vasalat professional set with wide-angle hinge with zero entry is the ideal solution for anyone who rely on maximum freedom of movement and sophisticated function in cabinets with inner pull-outs - perfect for hand and DIY enthusiasts with high demands on modern furniture technology. Thanks to the special construction, the door swivels completely out of the body without jumping into the interior. This means that interior drawers and drawers can be placed directly behind the front – without annoying spacers or compromises in use. Equipped with the proven Hettich Sensys technology, the hinge offers a smooth closing behaviour, high quality workmanship and reliable long-term function. It is ideal for flush-mounted fronts with door thicknesses from 15 to 32 mm. Box contents: 2x Hettich Sensys 8657i TH52 zero entry hinge overlying damped ÖW 165° corner stop for screwing on, with damping and spring. 2x base plate. 1x countersunk screw set. 1x vasalat pencil. Stop type: corner stop. The screw on Includes base plate closure type: with spring opening angle (°): 165 use: zero entry hinge. Surface: nickel-plated. Offset (mm): 0. Material: steel. Mounting type: for screwing. Design 2: integrated damping. Distance (mm): base plate: 0 type: Sensys 8657i. Content specification (PK): 1

• Wide angle hinge for door thickness 15-32 mm: this furniture hinge is ideal for cabinets with internal pull-outs, as the door swivels completely out of the body - with base plate for screwing on
• Quality: zero entry hinge with proven Hettich Sensys technology – especially for flush fronts without overlapping
• Advantage: no spacer strips necessary as this pot hinge does not jump inwards - the pull-outs can easily pass the hinge

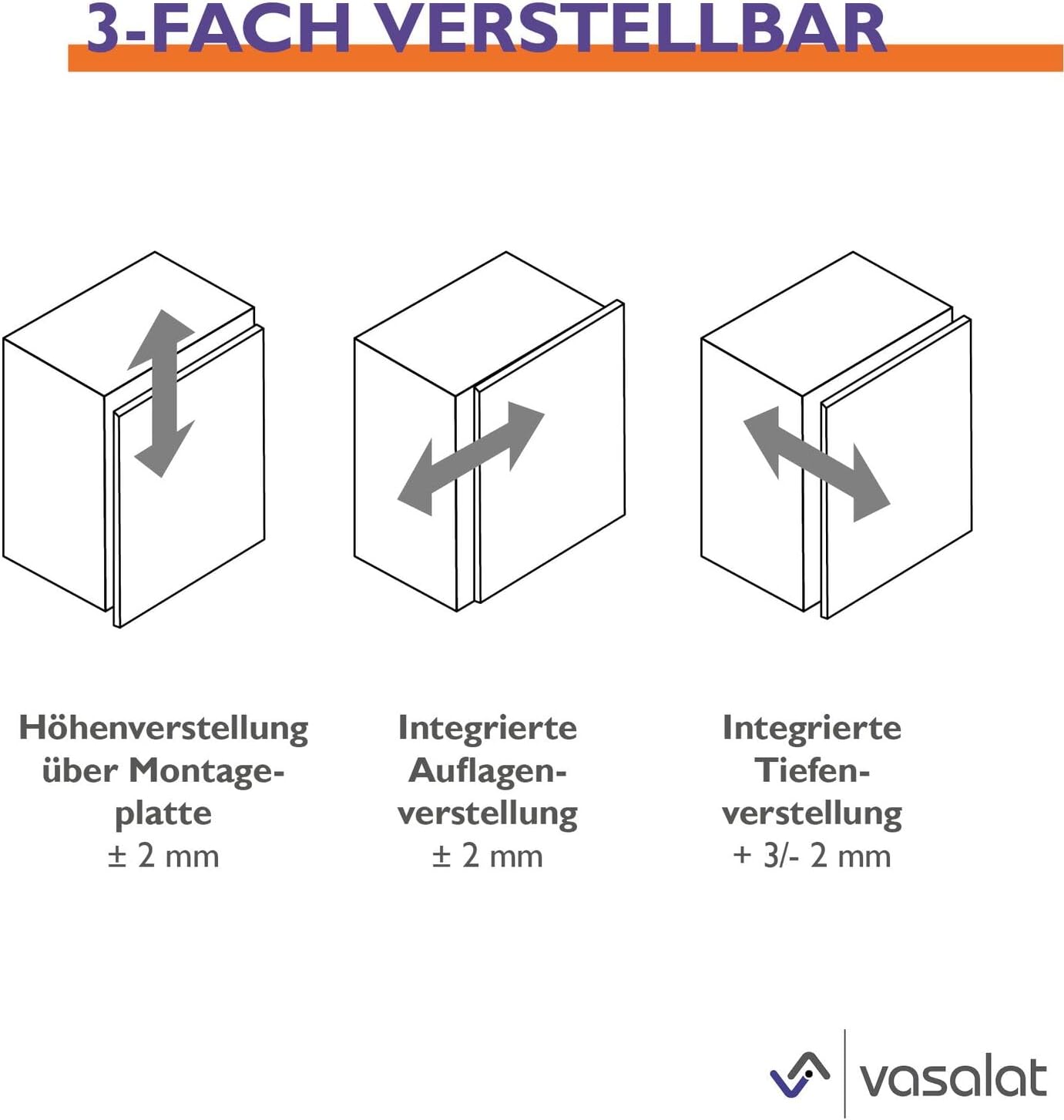

• Specifications: Type: Sensys 8657i TH52 | Factory number: 9099540 | Offset: 0 mm | Pot diameter: 35 mm | Pot depth: 11.6 mm | Integrated support adjustment: +/- 2 mm | Depth adjustment: +/- 3-2 mm | Height adjustment via mounting plate (optional): +/- 2 mm
• VASALAT Professional set: 2x Hettich Sensys 8657i TH52 zero entry hinge overlying dampened ÖW 165° with 2x base plate – corner stop for screwing on, with damping and spring + vasalat pencil and countersunk screws
