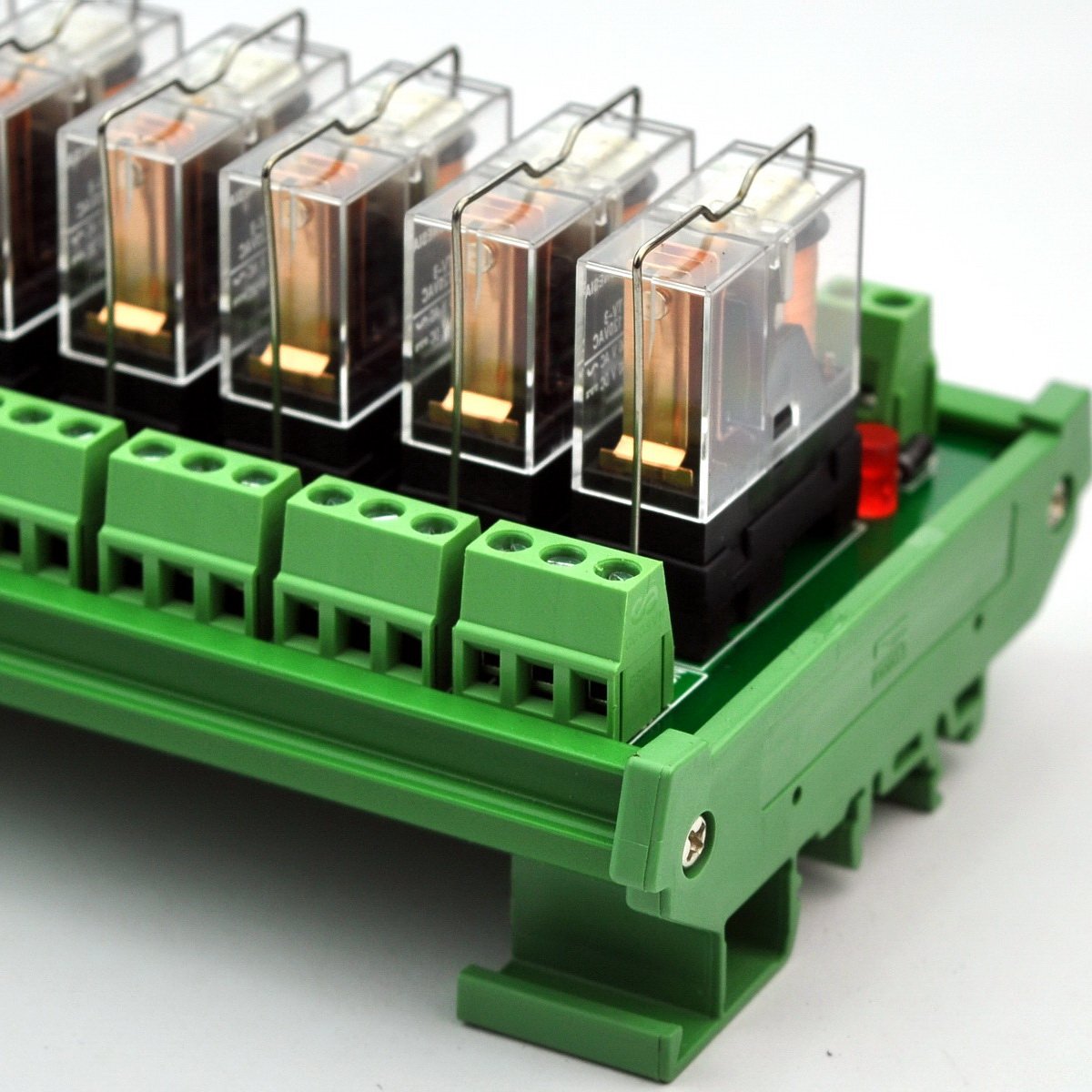

Electronics-Salon DIN Rail Mount AC/DC 12V Control 16 SPDT 16Amp Pluggable Power Relay Module, G2R-1-E

Datasheet: https://images-na.ssl-images-amazon.com/images/I/B1Chf3U0b5S.pdfRelay: OMRON G2R-1-E 12V Channel: 16 Control Signal: Voltage AC 10V~16V, or DC 9V~21V. Current 35mA(at 12V) Relay Switch Contact Rating: Resistive Load 250VAC/16A 30VDC/16A, Inductive Load: 250VAC/8A.Omron G2R-1-E industrial power relays, switching current up to 16A at 250VAC (or 30VDC), and easy to replace pluggable relays. Support AC / DC control signals. LED indicator for each relay channel , relay coil protection by means of a freewheeling diode. High quality screw terminal block, FR-4 fiber glass PCB, dual copper layers. Panel mount or DIN rail mount versions are available. Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.

• OMRON G2R-1-E industrial power relays, switching current up to 16A at 250VAC (or 30VDC), and easy to replace pluggable relays.
• Support AC / DC control signals.
• LED indicator for each relay channel , relay coil protection by means of a freewheeling diode.
• High quality screw terminal block, FR-4 fiber glass PCB, dual copper layers.
• Panel mount or DIN rail mount versions are available. Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
